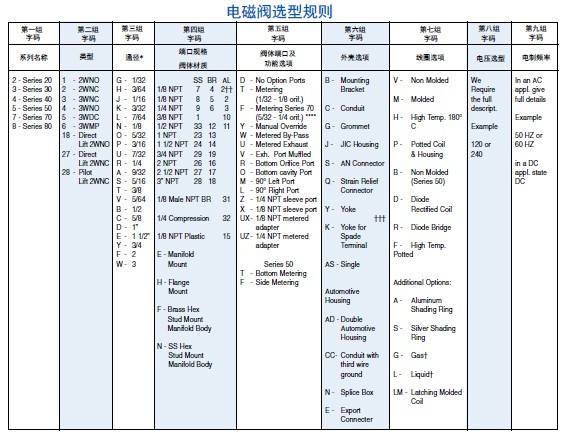

产品技术参数

压差（PSI)

通径

CV 值

电磁阀型号 扣环引线型外壳

管道引线外壳

AC

DC

N.O.

N.C.

N.O.

N.C.

1/8 NPT

1/4 NPT

1/8 NPT

1/4 NPT

400

400

1/32

1/32

0.024

0.024

24GG7XGV

24GG9ZGV

24GG7XCV

24GG9ZCV

150

(225)

150

3/64

1/16

0.052

0.095

24HJ7XGV

24HJ9ZGV

24HJ7XCV

24HJ9ZCV

100

(150)

100

1/16

1/16

0.095

0.095

24JJ7XGV

24JJ9ZGV

24JJ7XCV

24JJ9ZCV

100

(150)

100

1/16

3/32

0.095

0.156

24JK7XGV

24JK9ZGV

24JK7XCV

24JK9ZCV

100

(125)

100

1/16

1/8

0.095

0.284

24JN7XGV^

24JN9ZGV^

24JN7XCV^

24JN9ZCV^

75

(90)

75

3/32

1/8

0.156

0.284

24KN7XGV^

24KN9ZGV^

24KN7XCV^

24KN9ZCV^

30

30

1/8

1/8

0.201

0.284

24NN7XGV^

24NN9ZGV^

24NN7XCV^

24NN9ZCV^

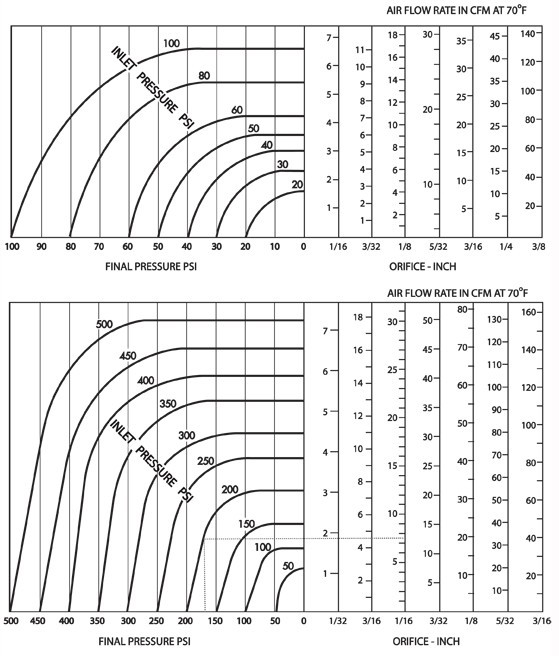

^ 只有通径1/8 的阀是UL列名认证
* FKM 密封材质应用的最大压差不能超过500 PSI.

注：以上表格里为准型号， 订购货时，请提供准确电源电压、频率；500PSI以上压力不建议使用FKM PTFE。
    维修包：(K21JDX-AC) .

适用特性

介质: 空气、水、其他介质使用丁晴橡胶密封材质，如其他蒸汽、汽油等可以选配其他密封材质，更多介质选项请联系代表处.*
适用温度: 标配型 —环境温度 0°F (-18°C) ~ 122°F (40°C) ;介质温度：0°F (-18°C) ~150°F (65°C) 其他特殊应用可选配.*
最大工作压差: 见上列表.
破坏压力: 5000 PSI
泄漏等级: 零泄漏.
真空度: 5 微米.*

电气特性

线圈电压: 6 ~ 825V AC 60 HZ. 和 5 ~ 720V AC 50 HZ. 或 1.8 ~ 265V DC
额定功率: AC = 8.7 W， DC = 9.5 W.
线圈绝缘等级: 非模压 A级，模压灌装F 级 (选配H级).
开关反应时间（气体）: 4 ~ 16 ms.
流 速: 高达 600 CPM.
占空比: 连续.

机械特性

阀体材质: 不锈钢（标配），可选配：黄铜
内部材质: 不锈钢
密封材质: 丁晴橡胶 (Buna) (标配). 可选：FKM、PTFE、EPDM、FFKM等.*
通径规格: 见上列表.
接口规格: 标准1/8″ 和 1/4″ NPT (可选配).*
外壳类型: 引线型, 1/2” NPT管道引线和其他选配.*
安全认证: 经过 UL 和 CSA防爆安全认证.*
使用寿命: 大于500万次，取决于应用程序、维护保养等因素.
阀体重量: 扣环引线: 515 g;管道引线: 545 g.
维修包: 见上列表.
选配说明: 可选配的项包括：压力、介质、电压、接口规格、材质、温度、防爆等*.

* 特殊应用可以咨询我们代表，同时我们可以为您提供专利产品ODM，OEM服务.

Series 20 General Purpose Valves Conduit

MODEL 24 1/4-18 NPT
3WNO CONDUIT CONNECTION



MODEL 24 1/8-27 NPT
3WNO CONDUIT CONNECTION



MODEL 24 BODY OPTION “E”
3-WAY NORMALLY OPEN
CONDUIT COIL CONNECTION



MODEL 24 BODY OPTION “O”
3-WAY NORMALLY OPEN
CONDUIT COIL CONNECTION



MODEL 24 BODY OPTION “R”
3-WAY NORMALLY OPEN
CONDUIT COIL CONNECTION



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
CONDUIT COIL CONNECTION



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
CONDUIT COIL CONNECTION



Series 20 General Purpose Valves Conduit/Bracket Connection

MODEL 24 1/4-18 NPT
3WNO
CONDUIT/BRACKET CONNECTION



MODEL 24 1/8-27 NPT
3WNO
CONDUIT/BRACKET CONNECTION



MODEL 24 BODY OPTION “E”
3WNO
CONDUIT/BRACKET COIL CONNECTION



MODEL 24 BODY OPTION “O”
3WNO
CONDUIT/BRACKET COIL CONNECTION



MODEL 24 BODY OPTION “R”
3WNO
CONDUIT/BRACKET COIL CONNECTION



MODEL 24 MANUAL OVERRIDE
3WNO
CONDUIT/BRACKET COIL CONNECTION



MODEL 24 METERING
3WNO
CONDUIT/BRACKET CONNECTION



Series 20 General Purpose Valves DIN

MODEL 24 1/4-18 NPT
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 1/8-27 NPT
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 BODY OPTION “E”
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 BODY OPTION “O”
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 BODY OPTION “R”
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
DIN STYLE COIL



MODEL 24 METERING
3-WAY NORMALLY OPEN
DIN STYLE COIL



Series 20 General Purpose Valves Grommet

MODEL 24 1/4-18 NPT
3WNO GROMMET WITH LEADS

MODEL 24 1/8-27 NPT
3WNO GROMMET WITH LEADS



MODEL 24 BODY OPTION “E”
3-WAY NORMALLY OPEN
GROMMET HOUSING WITH YOKE



MODEL 24 BODY OPTION “O”
3-WAY NORMALLY OPEN
GROMMET HOUSING WITH LEADS



MODEL 24 BODY OPTION “R”
3-WAY NORMALLY OPEN
GROMMET HOUSING WITH LEADS



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
GROMMET HOUSING WITH LEADS



MODEL 24 METERING
3-WAY NORMALLY OPEN
GROMMET HOUSING WITH LEADS



Series 20 General Purpose Valves Grommet/Bracket Connection

MODEL 24 1/4-18 NPT
3WNO
GROMMET/BRACKET WITH LEADS



MODEL 24 1/8-27 NPT
3WNO
GROMMET/BRACKET WITH LEADS



MODEL 24 BODY OPTION “E”
3WNO
GROMMET/BRACKET HOUSING WITH LEADS



MODEL 24 BODY OPTION “O”
3WNO
GROMMET/BRACKET HOUSING WITH LEADS



MODEL 24 BODY OPTION “R”
3WNO
GROMMET/BRACKET HOUSING WITH LEADS



MODEL 24 MANUAL OVERRIDE
3WNO
GROMMET/BRACKET HOUSING WITH LEADS



MODEL 24 METERING
3WNO
GROMMET/BRACKET HOUSING WITH LEADS



Series 20 General Purpose Valves Yoke Leads

MODEL 24 1/4-18 NPT
3-WAY NORMALLY OPEN
YOKE WITH LEADS



MODEL 24 1/8-27 NPT
3-WAY NORMALLY OPEN
YOKE WITH LEADS



MODEL 24 BODY OPTION “E”
3-WAY NORMALLY OPEN
MOLDED COIL WITH LEADS



MODEL 24 BODY OPTION “O”
3-WAY NORMALLY OPEN
MOLDED COIL WITH YOKE



MODEL 24 BODY OPTION “R”
3-WAY NORMALLY OPEN
YOKE WITH LEADS



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
YOKE WITH LEADS



MODEL 24 METERING
3-WAY NORMALLY OPEN
MODLED COIL WITH YOKE



Series 20 General Purpose Valves Yoke Spades

MODEL 24 1/4-18 NPT
3-WAY NORMALLY OPEN
YOKE WITH SPADES



MODEL 24 1/8-27 NPT
3-WAY NORMALLY OPEN
YOKE WITH SPADE TERMINALS



MODEL 24 BODY OPTION “E”
3-WAY NORMALLY OPEN
YOKE WITH SPADE TERMINALS



MODEL 24 BODY OPTION “O”
3-WAY NORMALLY
YOKE WITH SPADE TERMINALS



MODEL 24 BODY OPTION “R”
3-WAY NORMALLY OPEN
YOKE WITH SPADE TERMINALS



MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
YOKE WITH SPADE TERMINALS

MODEL 24 MANUAL OVERRIDE
3-WAY NORMALLY OPEN
YOKE WITH SPADE TERMINALS
