二位三通常开型电磁阀
该微型电磁阀是在不牺牲性能的情况下开发。微型外形能满足更多设备空间要求，广泛适用于各种流体介质。特殊应用请与代理商联系。

• 可以使用在要求防护等级高的现场
• 可选择严厉等级的防爆技术应用
• 高质量加工工艺制作

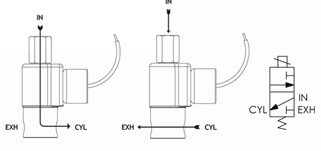

流程配置图

断电状态通电状态

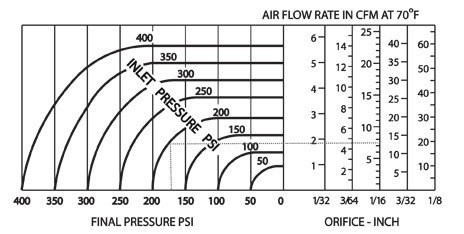

产品技术参数

压差（PSI)		通径		CV 值		电磁阀型号扣环引线型外壳	管道引线外壳
AC	DC	N.O.	N.C.	N.O.	N.C.	1/8 NPT	1/8 NPT

150	150	1/32	1/32	0.020	0.022	54GG8XGB	54GG8XCB
125	125	3/64	3/64	0.048	0.055	54HH8XGB	54HH8XCB
100	75	1/16	1/16	0.075	0.075	54JJ8XGB	54JJ8XCB
75	45	1/16	3/32	0.075	0.156	54KJ8XGB	54KJ8XCB
50	50	3/32	3/32	0.150	0.156	54KK8XGB	54KK8XCB
40	25	3/32	1/8	0.150	0.230	54NK8XGB	54NK8XCB

注：以上型号为产品标注：以上表格里为准型号，订购货时，请提供准确电源电压、频率。
维修包：(K54HHX-AC)

适用特性

介质: 空气、水、其他介质使用丁晴橡胶密封材质，如其他蒸汽、汽油等可以选配其他密封材质，更多介质选项请联系代表处.*
适用温度: 标配型 —环境温度 0°F (-18°C) ~ 122°F (40°C) ;介质温度：0°F (-18°C) ~150°F (65°C) 其他特殊应用可选配.*
最大工作压差: 见上列表.
破坏压力: 5000 PSI
泄漏等级: 零泄漏.
真空度: 5 微米 *

电气特性

线圈电压: 6.0 ~ 575V AC 60 HZ. 和 5.4 ~ 515V AC 50 HZ.或 3.0 ~ 300V DC
额定功率: AC = 6.0 W， DC = 7.0 W.
线圈绝缘等级: 非模压 A级，模压灌装F 级 (选配H级).
开关反应时间（气体）: 4 ~ 16 ms
流速: 高达600 CPM.
占空比: 连续.

机械特性

阀体材质: 不锈钢（标配），可选配：黄铜、铝合金.
内部材质: 不锈钢.
密封材质: 丁晴橡胶 (Buna) (标配). 可选：FKM、PTFE、EPDM、FFKM等.*
通径规格: 见上列表.
接口规格: 1/8″ NPT (标配.).*
外壳类型: 引线, 1/2” NPT管道引线和其他选配.*
安全认证: 经过 UL 和 CSA防爆安全认证 .*
使用寿命: 大于500万次，取决于应用程序、维护保养等因素.
阀体重量: 185 g.
维修包: 见上列表.

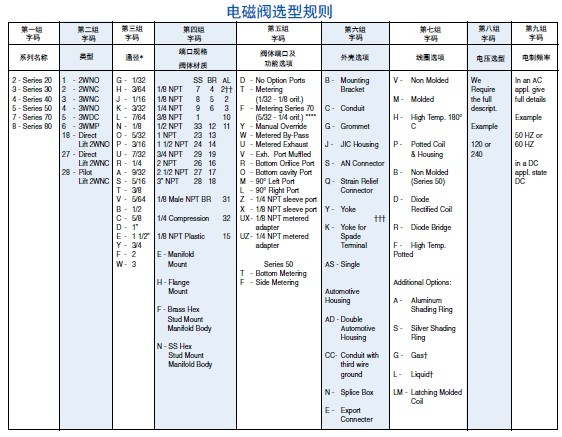

选配说明: 可选配的项包括：压力、介质、电压、接口规格、材质、温度、防爆等*.

* 特殊应用可以咨询我们代表，同时我们可以为您提供专利产品ODM，OEM服务

Series 50 General Purpose Valves Conduit

MODEL 54

3WNO

CONDUIT COIL CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION “E”

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION “O”

3WNO

CONDUIT CONNECTION

MODEL 54 BODY OPTION “R”

3WNO

CONDUIT CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT COIL CONNECTION

Series 50 General Purpose Valves Conduit/Bracket Connection

MODEL 54 PIPED EXHAUST

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 10-32 PORTS

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION “E”

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION “O”

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 BODY OPTION “R”

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 METERED BODY

3WNO

CONDUIT/BRACKET CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

CONDUIT/BRACKET CONNECTION

Series 50 General Purpose Valves Grommet

MODEL 54

3WNO GROMMET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION “E”

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION “O”

3WNO

GROMMET WITH LEADS

MODEL 54 BODY OPTION “R”

3WNO

GROMMET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET WITH LEADS

Series 50 General Purpose Valves Grommet/Bracket Connection

MODEL 54

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 10-32 PORTS

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION “E”

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION “O”

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 BODY OPTION “R”

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 METERED BODY

3WNO

GROMMET/BRACKET WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

GROMMET/BRACKET WITH LEADS

Series 50 General Purpose Valves Splice Box

MODEL 54

3WNO

SPLICE BOX CONNECTION

MODEL 54 10-32 PORTS

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION “E”

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION “O”

3WNO

SPLICE BOX CONNECTION

MODEL 54 BODY OPTION “R”

3WNO

SPLICE BOX CONNECTION

MODEL 54 METERED BODY

3WNO

SPLICE BOX CONNECTION

MODEL 54 STUD MOUNT BODY

3WNO

SPLICE BOX CONNECTION

Series 50 General Purpose Valves Yoke Leads

MODEL 54

3WNO

YOKE WITH LEADS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION “E”

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION “O”

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION “R”

3WNO

YOKE WITH LEADS

MODEL 54 BODY OPTION “R”

3WNO

YOKE WITH LEADS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH LEADS

Series 50 General Purpose Valves Yoke Spades

MODEL 54

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 10-32 PORTS

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION “E”

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION “O”

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 BODY OPTION “R”

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 METERED BODY

3WNO

YOKE WITH SPADE TERMINALS

MODEL 54 STUD MOUNT BODY

3WNO

YOKE WITH SPADE TERMINALS
