产品技术参数

压差(PSI)		通径		CV值				扣环引线型外壳	管道引线型外壳
AC	DC	N.C.	N.O.	N.C.	NO			1/4 NPT PORTS	1/4 NPT PORTS
350	350	1/16	1/16	0.09	0.09			75JJ9ZGV	75JJ9ZCV
250	250	3/32	3/32	0.22	0.22			75KK9ZGV	75KK9ZCV
175	175	1/8	1/8	0.35	0.35			75NN9ZGV	75NN9ZCV
125	125	5/32	5/32	0.45	0.45			75OO9ZGV	75OO9ZCV
100	100	3/16	3/16	0.50	0.50			75PP9ZGV	75PP9ZCV

注：以上表格里为准型号，订购货时，请提供准确电源电压、频率。
    维修包：(K75OOX-AC)

介质: 空气、水、其他介质使用丁晴橡胶密封材质，如其他蒸汽、汽油等可以选配其他密封材质，更多介质选项请联系代表处.*
适用温度: 标配型 —环境温度 0°F (-18°C) ~ 122°F (40°C) ;介质温度：0°F (-18°C) ~150°F (65°C) 其他特殊应用可选配.*
最大工作压差: 见上列表.
破坏压力: 4000 PSI
泄漏等级: 零泄漏.
真空度: 5 微米 *

电气特性

线圈电压: 12 ~ 1150V AC 60 HZ. 和 11 ~ 1035V AC 50 HZ. 或 2.5 ~ 220V DC
额定功率: AC = 18.0 W， DC = 16.0 W.
线圈绝缘等级: 非模压 A级，模压灌装F 级 (选配H级).
开关反应时间（气体）: 4 ~ 16 ms

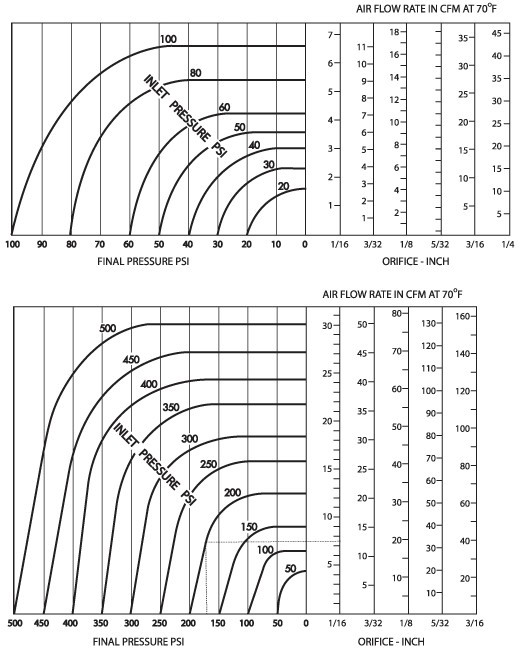

流 速: 高达600 CPM.
占空比: 连续.

机械特性

阀体材质: 不锈钢（标配），可选配：黄铜、铝合金.
内部材质: 不锈钢.
密封材质: 丁晴橡胶 (Buna) (标配). 可选：FKM、PTFE、EPDM、FFKM等.*
通径规格: 见上列表.
接口规格: 1/4″ NPT (标配.).*
外壳类型: 引线, 1/2” NPT管道引线和其他选配.*
安全认证: 经过 UL 和 CSA防爆安全认证 .*
使用寿命: 大于500万次，取决于应用程序、维护保养等因素.
阀体重量: 915 g.
维修包: 见上列表.
选配说明: 可选配的项包括：压力、介质、电压、接口规格、材质、温度、防爆等*.

* 特殊应用可以咨询我们代表，同时我们可以为您提供专利产品ODM，OEM服务.

Series 70 General Purpose Valves Conduit

MODEL 75 1/4-18 NPT

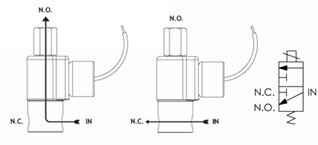

3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 75 BODY OPTION “E”
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 75 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 75 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 75 METERED BODY
3-WAY DIRECTIONAL CONTROL
CONDUIT CONNECTION



Series 70 General Purpose Valves Conduit/Bracket Connection

MODEL 75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 75 BODY OPTION “E”
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 75 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 75 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 75 MANUAL OVERRIDE
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 75 METERED BODY
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION



Series 70 General Purpose Valves Grommet

MODEL 75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 75 BODY OPTION “E”
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 75 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 75 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 75 MANUAL OVERRIDE
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 75 METERED BODY
3-WAY DIRECTIONAL CONTROL
GROMMET WITH LEADS

Series 70 General Purpose Valves Grommet/Bracket Connection

MODEL 75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION



MODEL 75 BODY OPTION “E”
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION



MODEL 75 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION

MODEL 75 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION

MODEL 75 MANUAL OVERRIDE
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION

MODEL 75 METERED BODY
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET CONNECTION

Series 70 General Purpose Valves Splice Box

MODEL 75 1/4-18 NPT
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION

MODEL 75 BODY OPTION “E”
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION

MODEL 75 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION

MODEL 75 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION

MODEL 75 MANUAL OVERRIDE
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION

MODEL 75 METERED BODY
3-WAY DIRECTIONAL CONTROL
SPLICE BOX CONNECTION
