产品技术参数

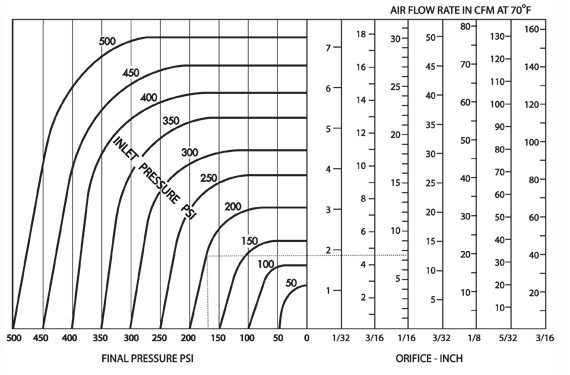

压差(PSI)		通径		CV 值				扣环引线型	管道引线型
AC	DC	N.C.	N.O.	N.C.	N.O.			1/8 NPT PORTS	1/8 NPT PORTS
300	300	1/32	1/32	0.024	0.024			35GG5XGV	35GG5XCV
175	175	3/64	1/16	0.052	0.095			35HJ5XGV	35HJ5XCV
125	125	1/16	1/16	0.095	0.095			35JJ5XGV	35JJ5XCV
75	75	3/32	3/32	0.160	0.160			35KK5XGV	35KK5XCV
50	50	1/8	3/32	0.275	0.160			35NK5XGV	35NK5XCV

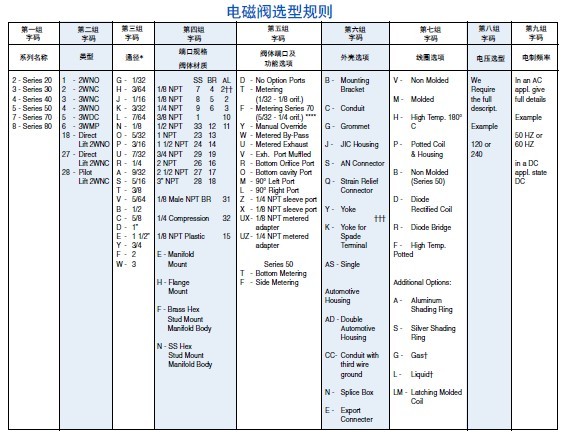

注：以上表格里为准型号， 订购货时，请提供准确电源电压、频率。
   维修包：(K35HJX-AC)

适用特性

介质: 空气、水、其他介质使用丁晴橡胶密封材质，如其他蒸汽、汽油等可以选配其他密封材质，更多介质选项请联系代表处
适用温度: 标配型 —环境温度 0°F (-18°C) ~ 122°F (40°C) ;介质温度：0°F (-18°C) ~150°F (65°C) 其他特殊应用可选配.*
最大工作压差: 见上列表.
破坏压力: 5000 PSI
泄漏等级: 零泄漏.
真空度: 5 微米*

电气特性

线圈电压: 6.0 ~ 650V AC 60 HZ. 和 5.2 ~ 560V AC 50 HZ. 或 2.0 ~ 240V DC
额定功率: AC = 7.0 W； DC = 8.0 W.
线圈绝缘等级: 非模压 A级，模压灌装F 级 (选配H级).
开关反应时间（气体）: 4 ~ 16 ms.
流 速: 高达 600 CPM.
占空比: 连续.

机械特性

阀体材质: 黄铜（标配），可选配：不锈钢.
内部材质: 不锈钢.
密封材质: 丁晴橡胶 (Buna) (标配). 可选：FKM、PTFE、EPDM、FFKM等.*
通径规格: 见上列表.
接口规格: 1/8″ NPT (标配.).*
外壳类型: 引线, 1/2” NPT管道引线和其他选配.*
安全认证: 经过 UL 和 CSA防爆安全认证 .*
使用寿命: 大于500万次，取决于应用程序、维护保养等因素.
阀体重量: 365g.
维修包: 见上列表.
选配说明: 可选配的项包括：压力、介质、电压、接口规格、材质、温度、防爆等*.

* 特殊应用可以咨询我们代表，同时我们可以为您提供专利产品ODM，OEM服务.

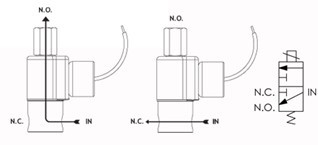

Series 30 General Purpose Valves Conduit

MODEL 35
3W DIRECTIONAL CONTROL
CONDUIT CONNECTION

MODEL 35 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
CONDUIT COIL CONNECTION

MODEL 35 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
CONDUIT COIL CONNECTION

MODEL 35 METERING
3-WAY DIRECTIONAL CONTROL
CONDUIT COIL CONNECTION

MODEL 35 1/8-27 NPT
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 35 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
CONDUIT COIL CONNECTION

MODEL 35 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 35 METERING
3-WAY DIRECTIONAL CONTROL
CONDUIT/BRACKET CONNECTION

MODEL 35 1/8-27 NPT
3-WAY DIRECTIONAL CONTROL
DIN STYLE COIL

MODEL 35 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
DIN STYLE COIL

MODEL 35 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
DIN STYLE COIL

MODEL 35 METERING
3-WAY DIRECTIONAL CONTROL
DIN STYLE COIL

MODEL 35
3W DIRECTIONAL CONTROL
GROMMET WITH LEADS

MODEL 35 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
GROMMET HOUSING WITH LEADS

MODEL 35 METERED BODY
3-WAY DIRECTIONAL CONTROL
GROMMET HOUSING WITH LEADS

MODEL 35 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 33 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
GROMMET/BRACKET HOUSING WITH LEADS

MODEL 35 METERED BODY
3-WAY DIRECTIONAL CONTROL
GROMMET HOUSING WITH LEADS

MODEL 35 1/8-27 NPT
3-WAY DIRECTIONAL CONTROL
MOLDED COIL WITH YOKE

MODEL 35 BODY OPTION “O”
3-WAY DIRECTIONAL CONTROL
YOKE WITH LEADS

MODEL 35 BODY OPTION “R”
3-WAY DIRECTIONAL CONTROL
YOKE WITH LEADS

MODEL 35 METERING
3-WAY DIRECTIONAL CONTROL
MOLDED COIL WITH YOKE

MODEL 35 1/8-27 NPT
3-WAY DIRECTIONAL CONTROL
YOKE WITH SPADE TERMINALS
